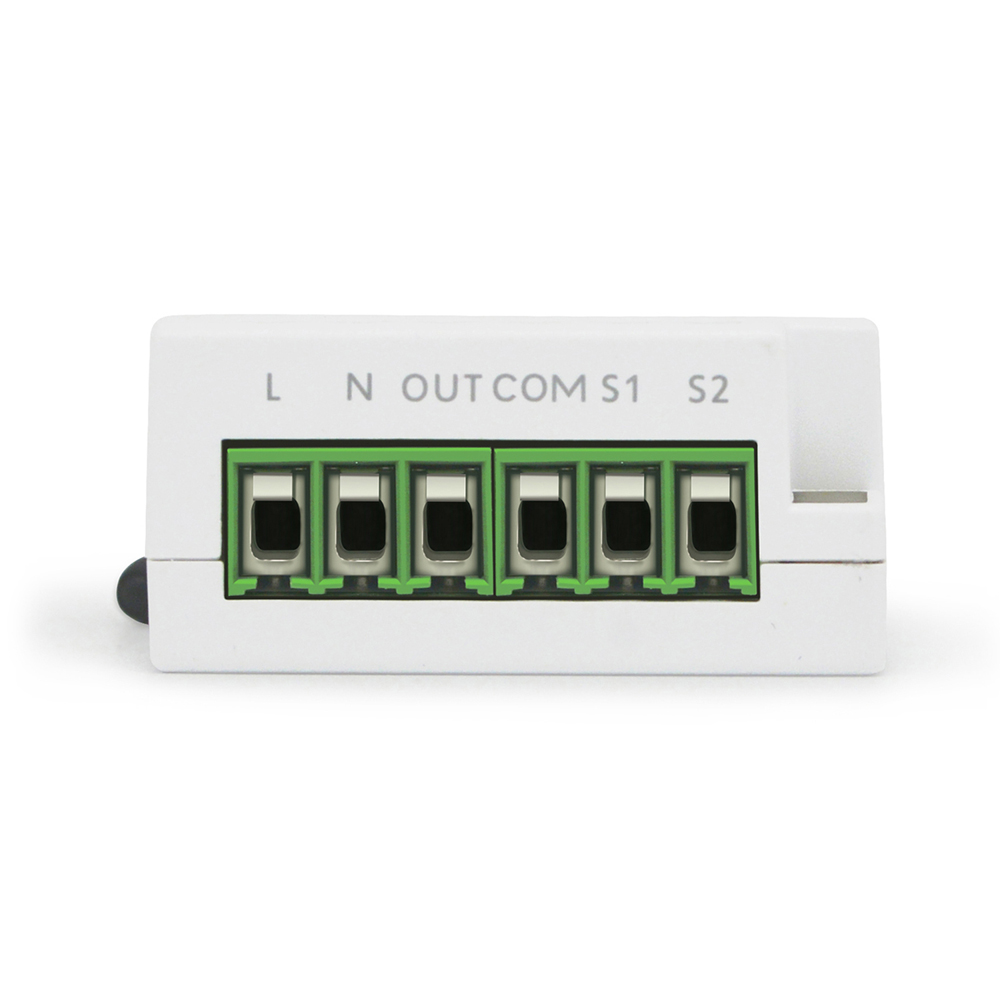

Aeotec Nano Dimmer

Compact flush-mount dimmer module with Z-Wave

€41.31*

Total Price incl. Accessories €41.31*

*Price is excluding VAT

Product number: ZW111

Manufacturer: Aeotec

EAN: 1220000013971

Product information "Aeotec Nano Dimmer"

The Aeotec Nano Dimmer is a flush mount module for controlling and dimming lighting via Z-Wave. The module is designed to be placed in a flush-mounting box and can be connected to a wall switch. The Aeotec Nano Dimmer works with 2- and 3-wire installations. Optional: Aeotec Dimmer Bypass for low wattage lighting

Features

Control dimmable lighting via Z-Wave
Maximum load 1,2A
Works in 2- and 3-wire setup
Supports energy measurement

Properties

Actors:	Dimmer
Communicatie & Protocol:	Z-Wave
Installation method:	Flush mount
Maximum load capacity:	1.2A
Operating humidity:	8% - 80%
Operating temperature:	0-40°C
Power source:	120 - 240VAC, 50/60Hz
Protocol:	Z-Wave Plus
Supported load types:	Dimmer / 2- and 3-wire / Incandescent lamps, Halogen lamps with or without electronic transformer, Dimmable LED lamps (leading edge and trailing edge), Low voltage VAC LED lighting, Dimmable fluorescent lamps, Switch / only with 3-wire / Non-dimmable lamps, Compact fluorescent lamps with electronic rectifier, Fluorescent lamps with electronic ballast, Non-dimmable LED lamps Direct current LED lamps (VDC)
