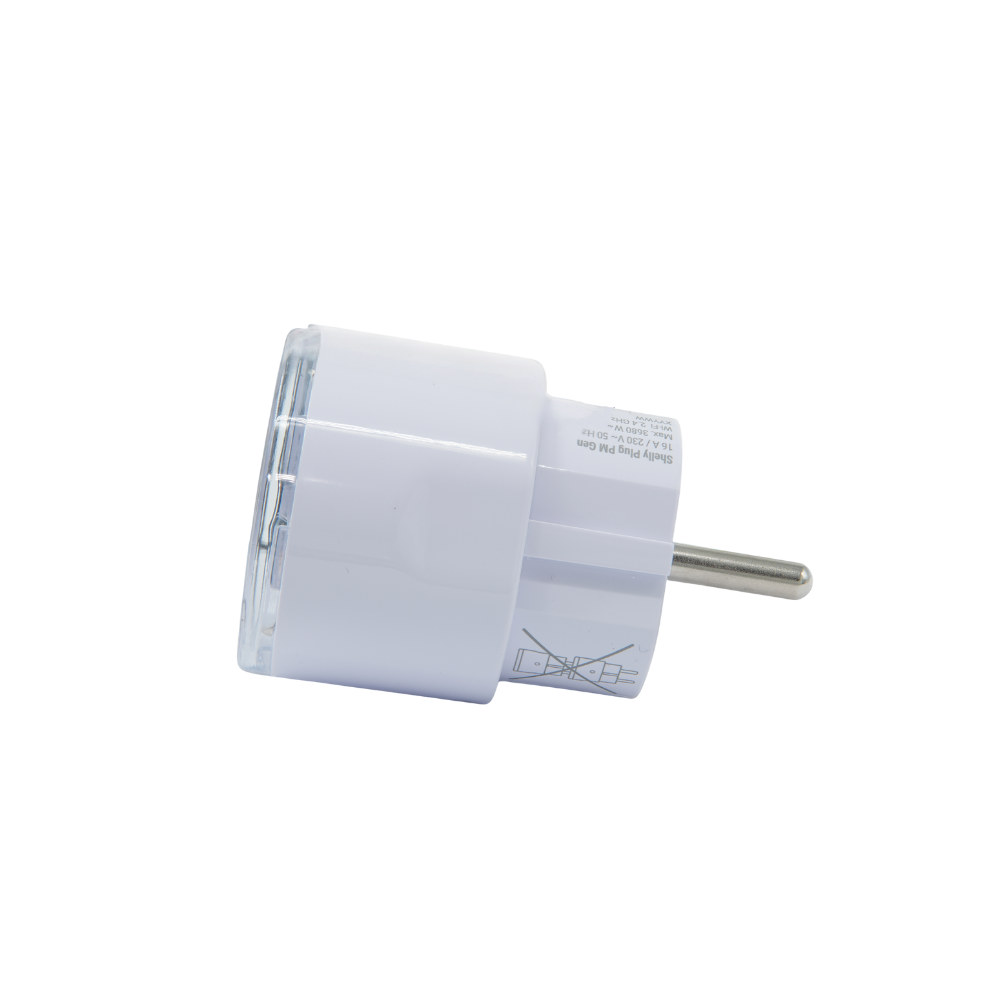

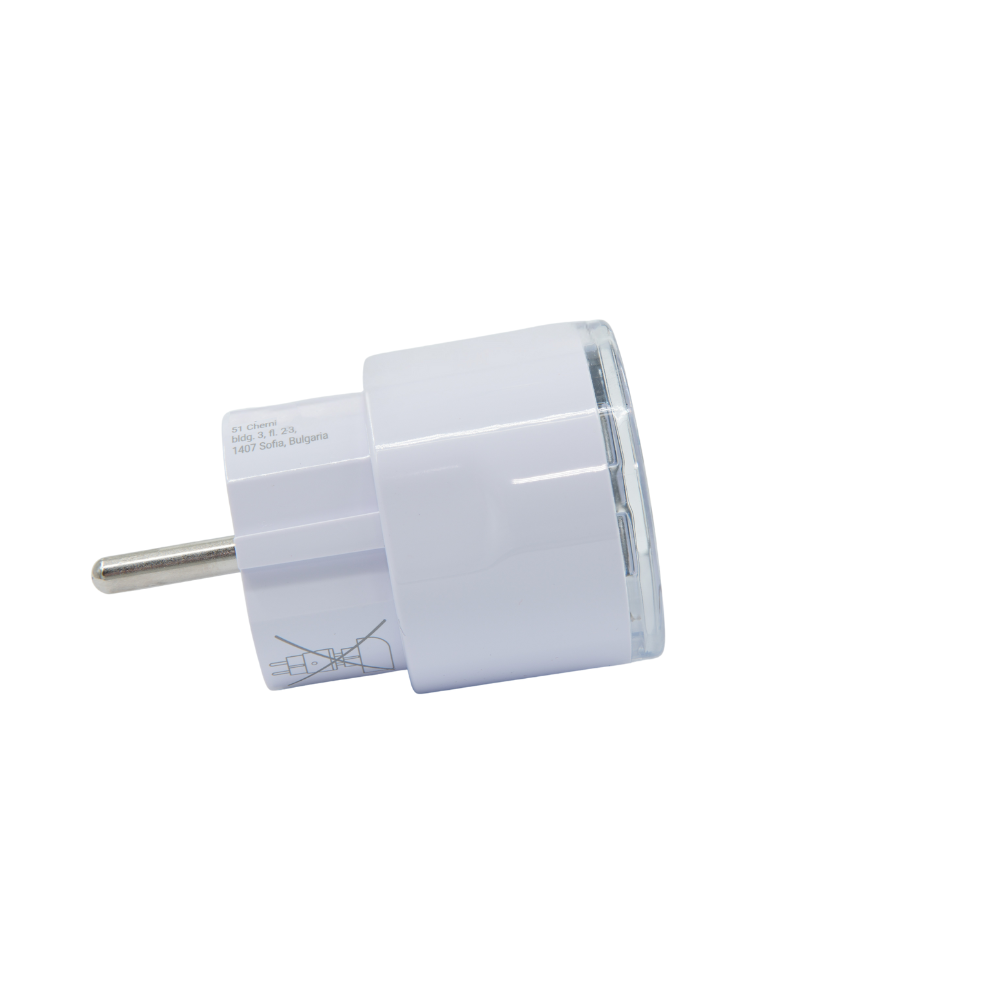

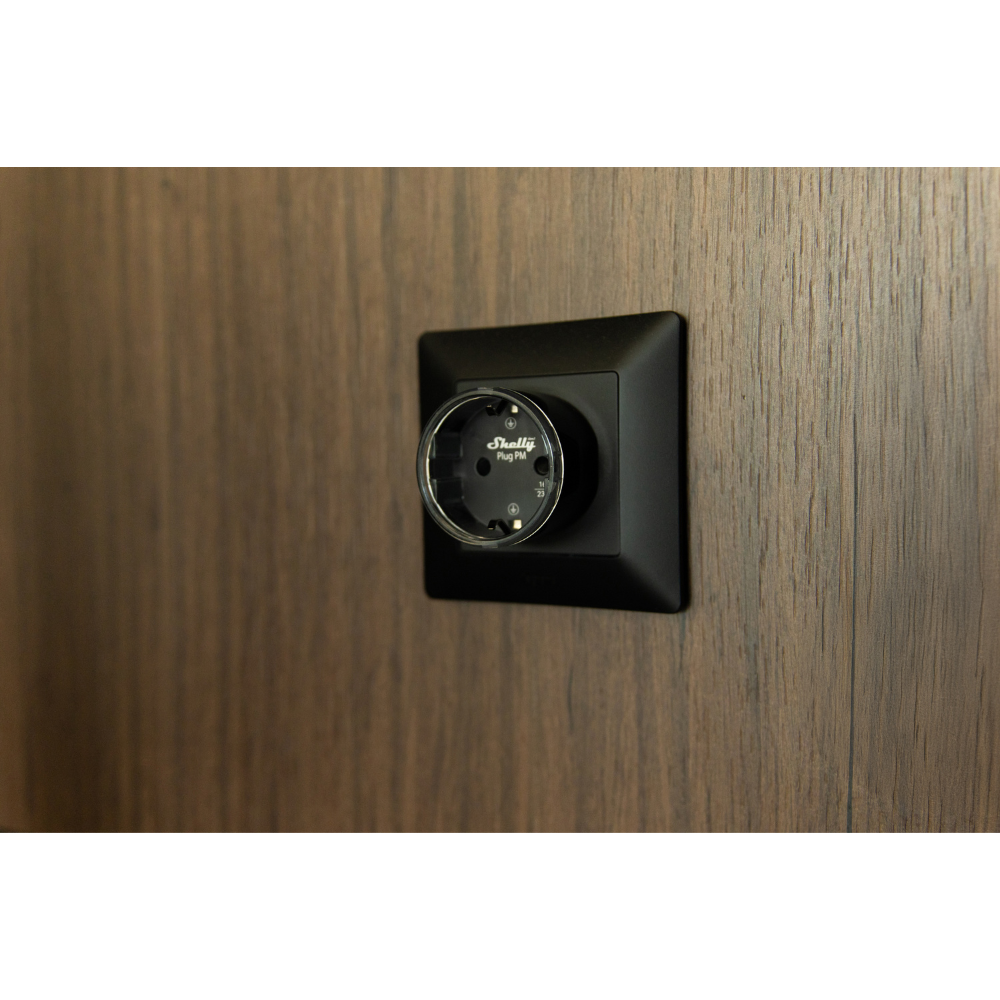

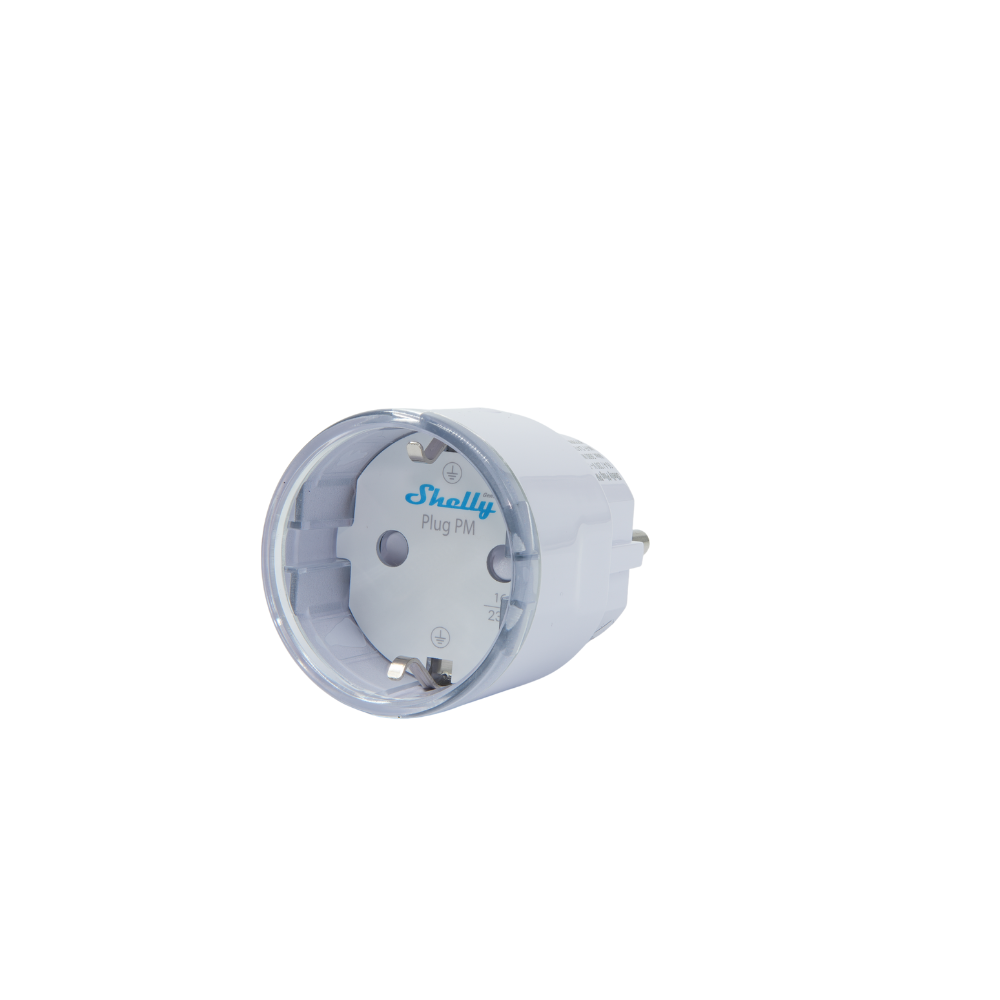

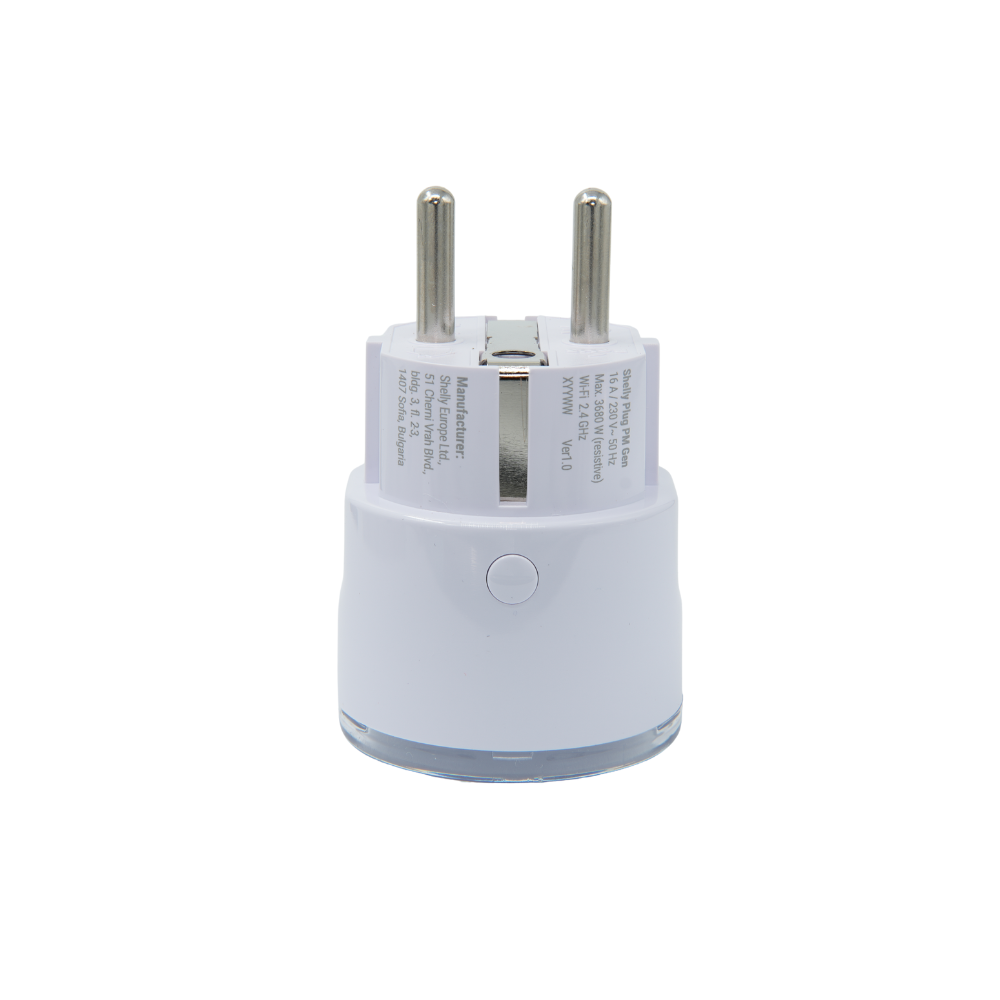

Product information "Shelly Plug PM Gen3 - white"
The Shelly Plug PM Gen3 is a smart plug with integrated power metering for monitoring and analysing the energy consumption of connected appliances. Voltage, current, power and energy are measured continuously, giving clear insight into consumption patterns and making high-consumption devices easy to identify.
The Shelly Plug PM Gen3 works via Wi-Fi and Bluetooth and can be accessed locally or remotely. The built-in web interface allows configuration and monitoring without additional software. Integration with third-party home automation systems and cloud control via the Shelly Smart Control app are optional.
Note: this plug has no relay and can therefore only be used for power monitoring.
Features
- Smart Wi-Fi plug with power metering (voltage, current, power and energy)
- Measurement up to max. 16A / 3680W (resistive load)

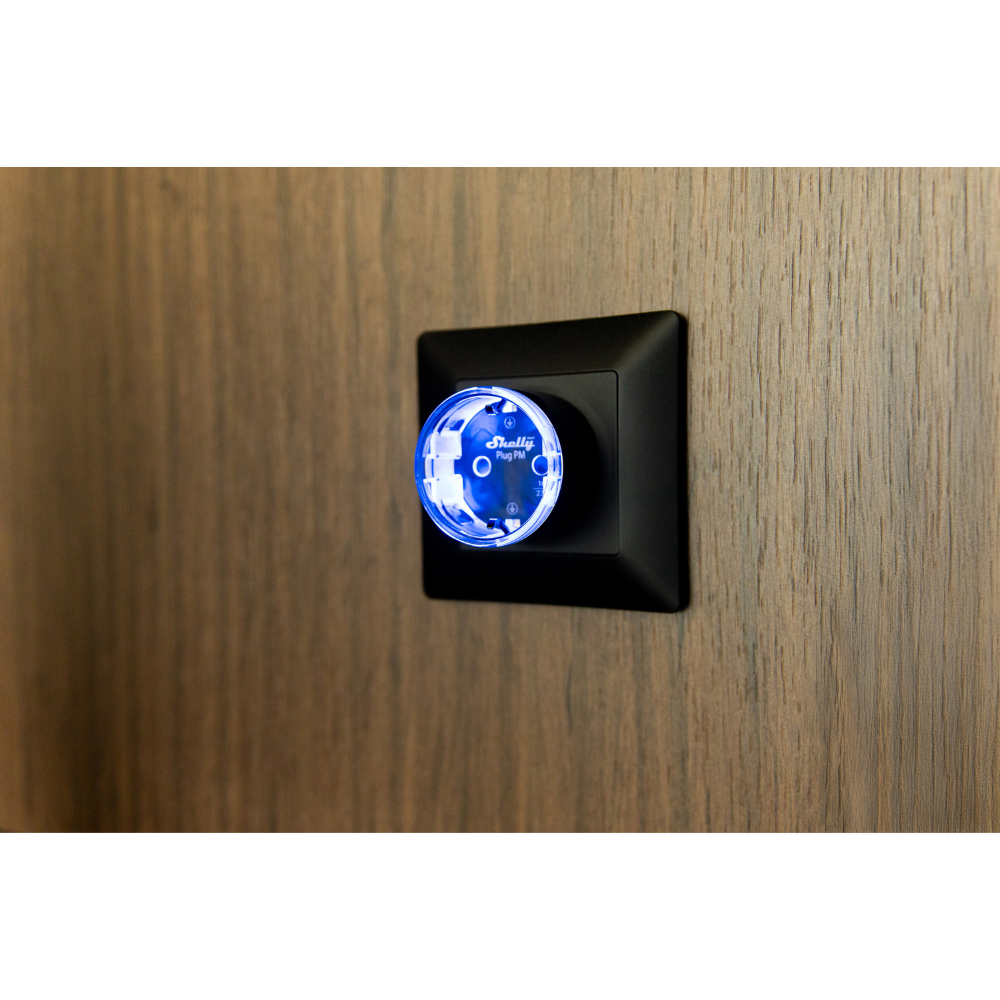

- Multicolour LED indication, e.g. as consumption indicator, with night mode
- Overload notification
- Internal temperature sensing
- Built-in web interface for configuration and monitoring
- Scripting, webhooks and MQTT
- Wi-Fi range extender and BLE gateway
- Compatible with third-party home automation systems
- Support for Shelly Cloud and the Shelly Smart Control app (optional)
- Virtual components
- Power supply: 230V AC, 50 Hz; self-consumption < 1W

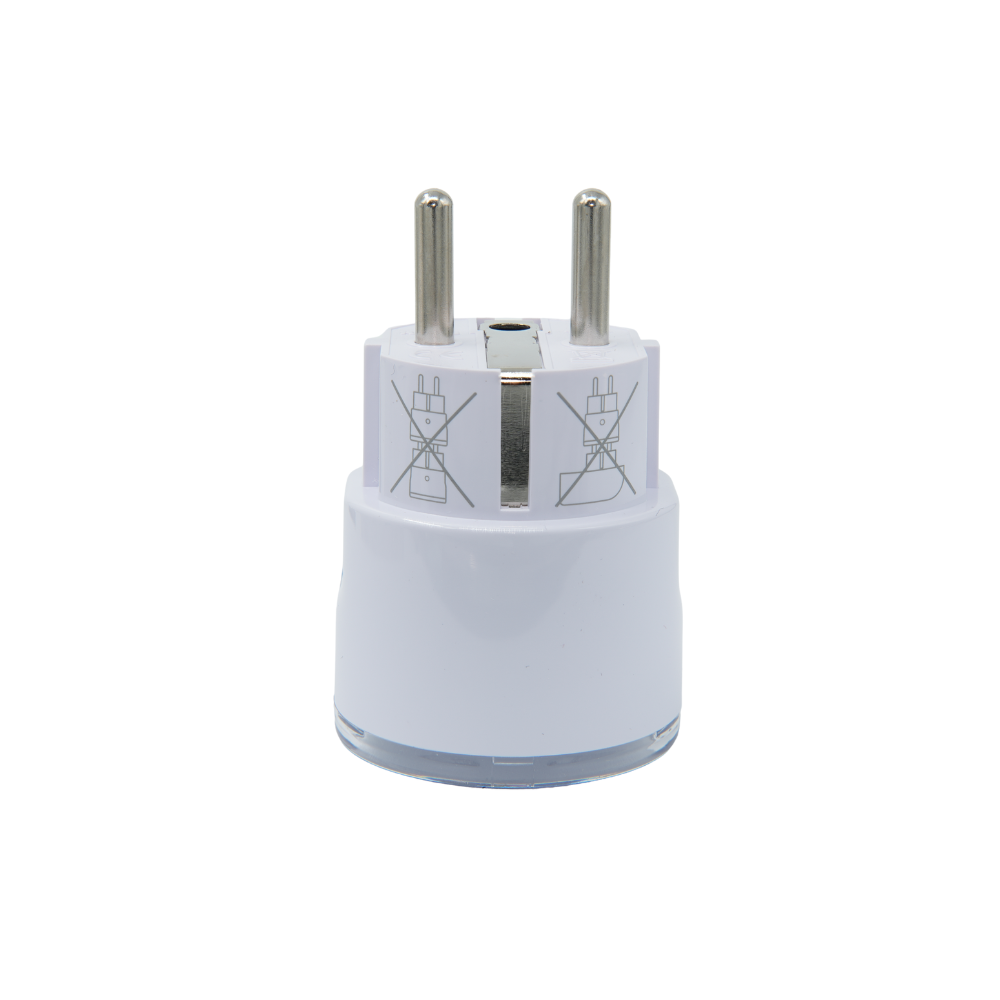

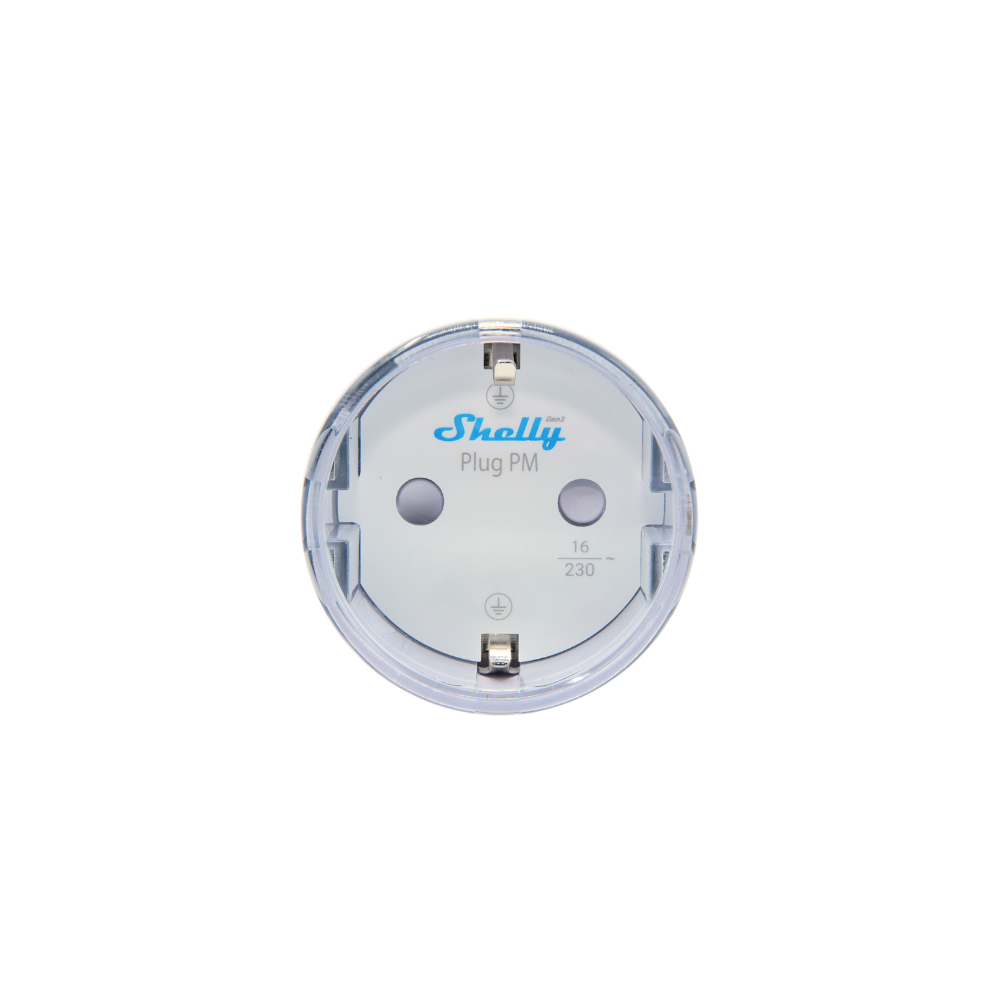

- CEE 7/7 plug, type F (Schuko) socket
- Dimensions: 44 x 44 x 70 mm, weight 48 g
- Ambient temperature: -20 °C to 40 °C
