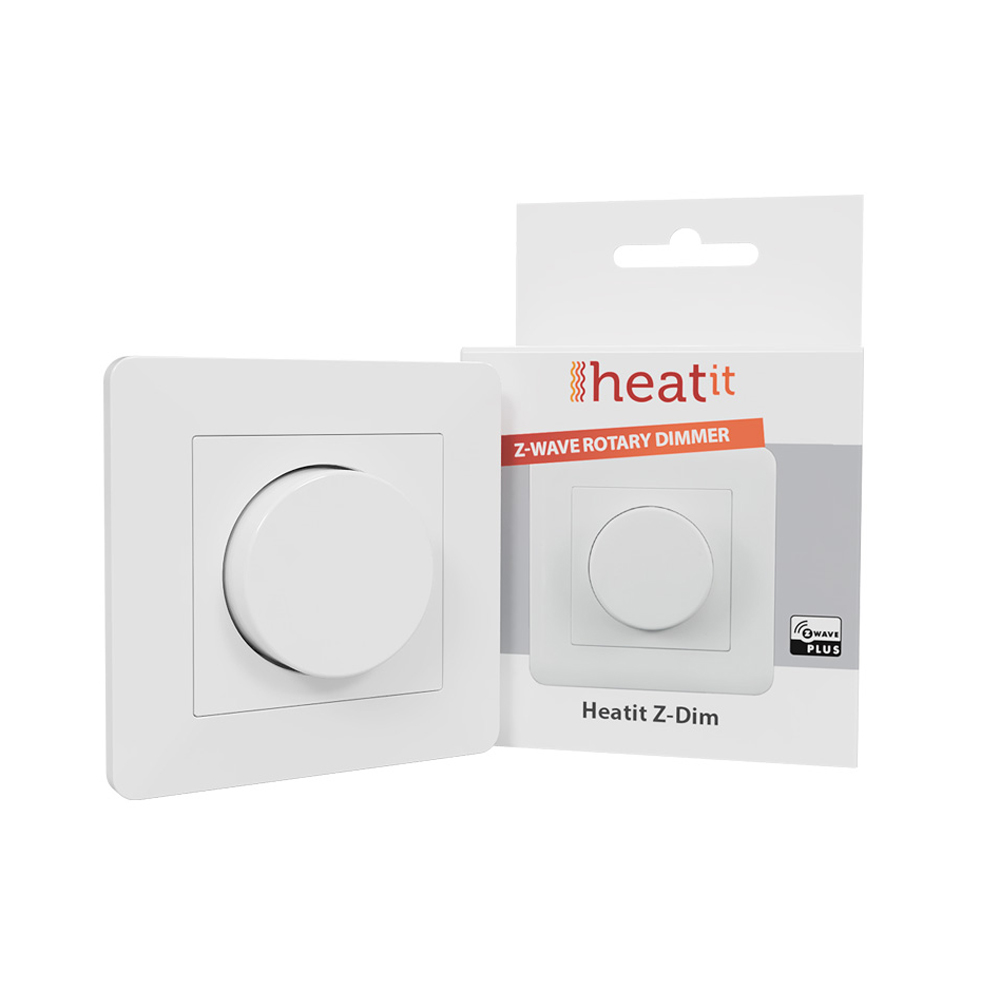

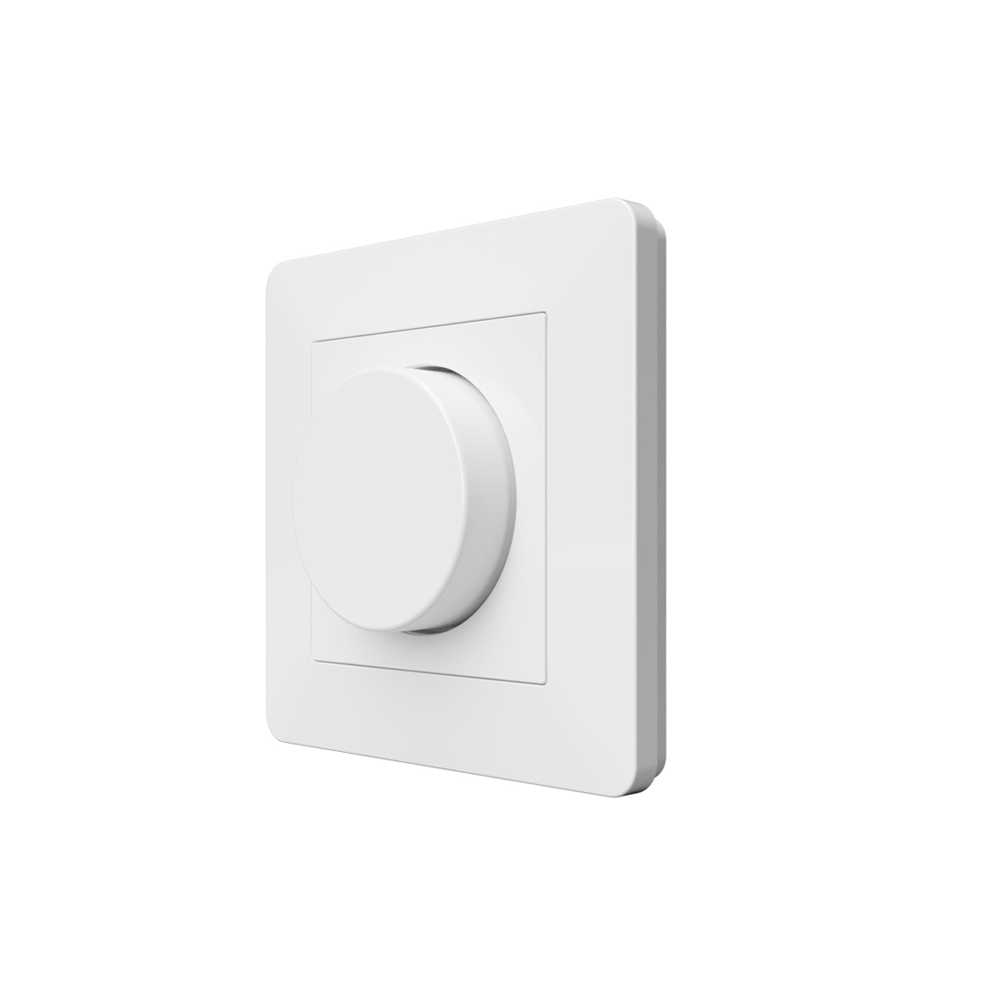

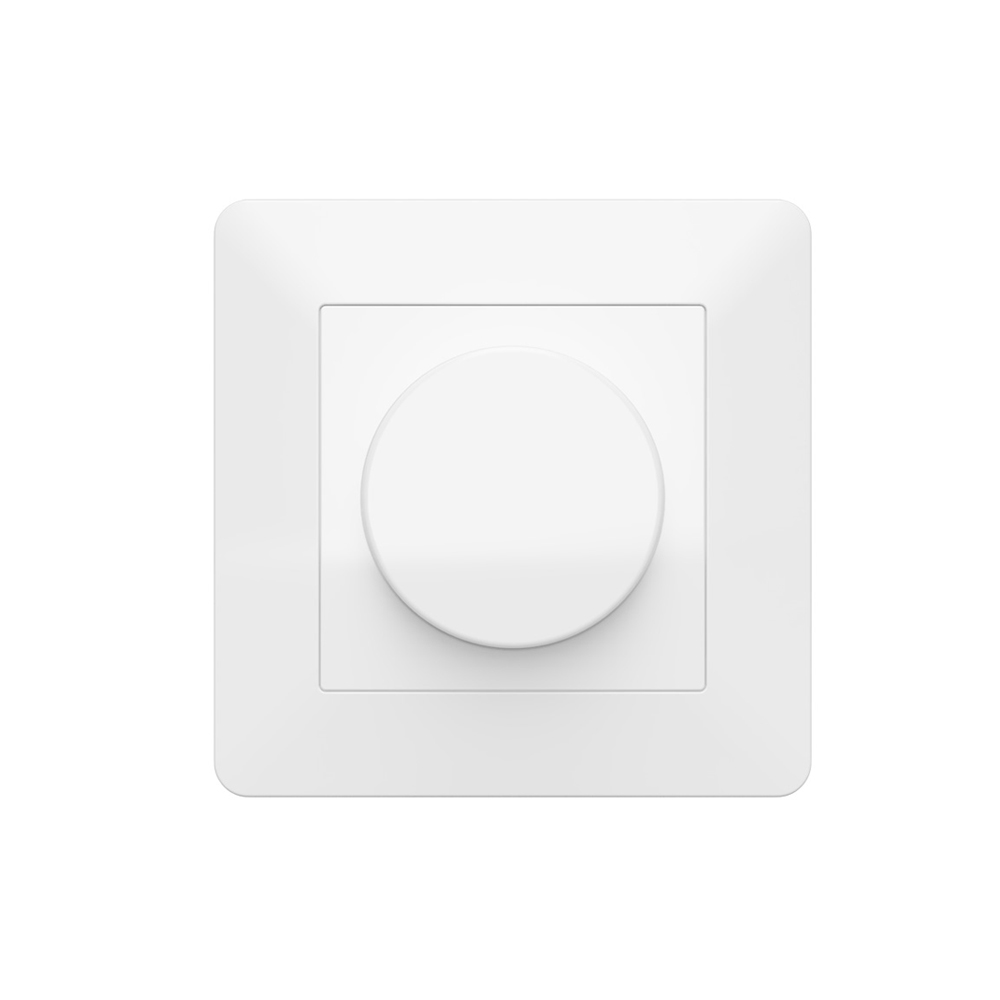

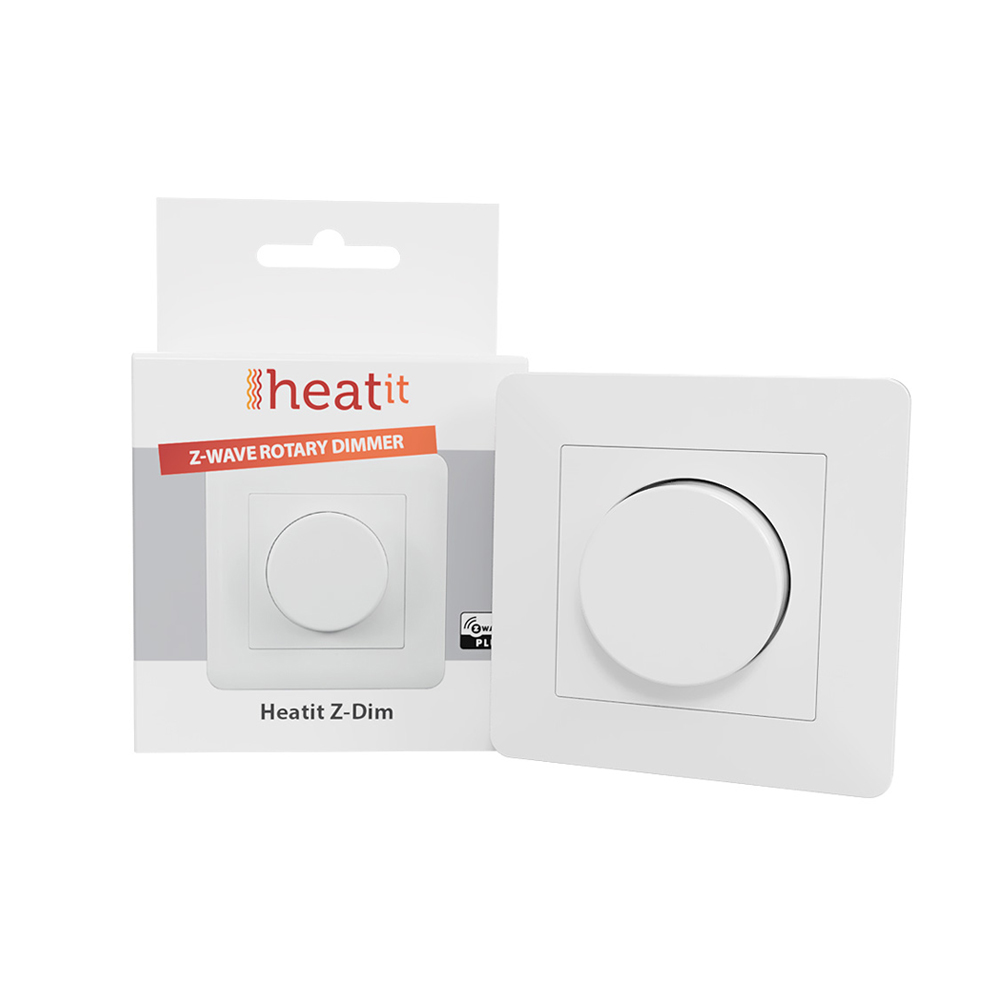

Heatit Z-Dim
Z-Wave rotary dimmer for many different types of light sources, fits GIRA ST55
Product number:
1444444
Manufacturer:
Heatit
EAN:
7071236014003
Manufacturer product ID:
1444444
Product information "Heatit Z-Dim"

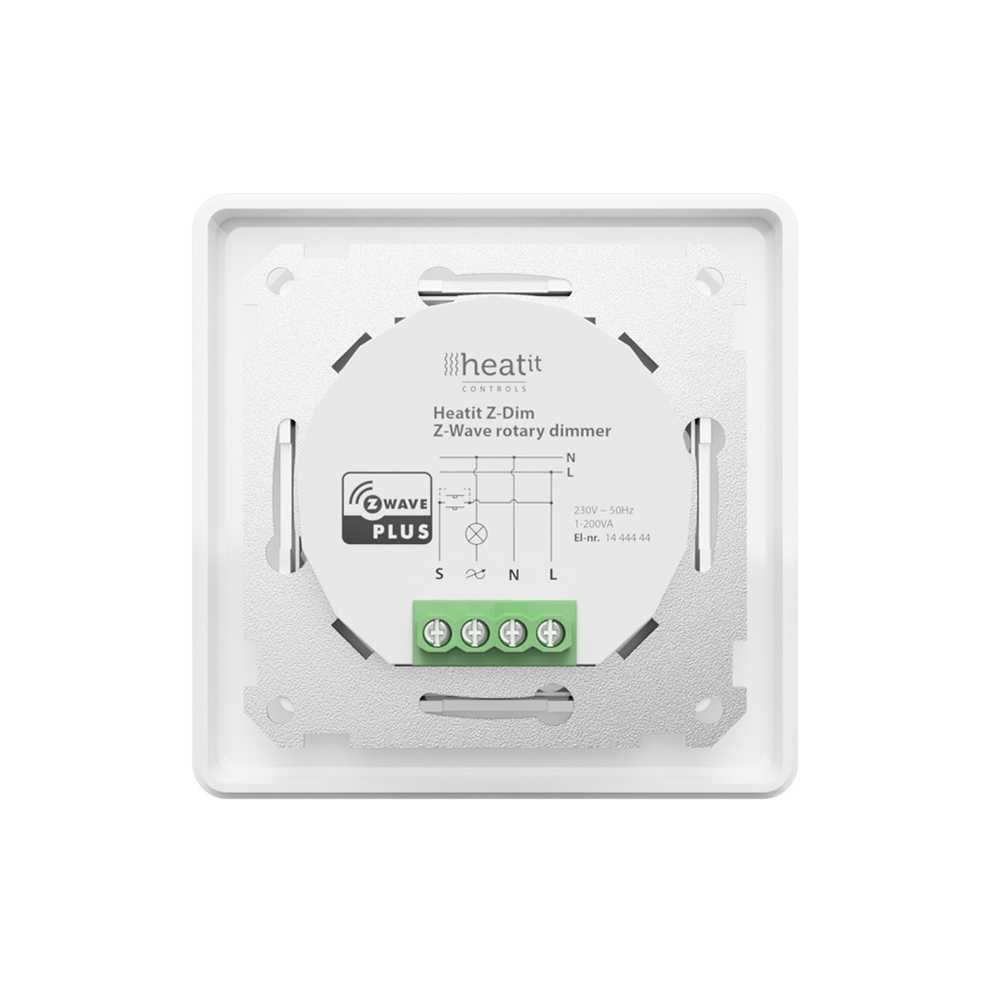

Z-Dim works with various light sources (from 1W), including: halogen and incandescent lamps, LED lighting, dimmable LED drivers and electronic transformers. The dimmer is equipped with an extra input, so that Z-Dim can easily be applied in a hallway or stairwell. The switch fits in frames of brands such as: GIRA System 55, Elko and Schneider Exxact. Z-Dim is supplied with 2 rotary switches and central plates in the colours: RAL9010 and RAL9003. Important: Heatit Z-Dim requires L + N. The connection of a light source is not required, Z-Dim can also control Z-Wave devices via association and scene activation.
Properties
| Active energy measurement: | Yes |
|---|---|
| Built-in box: | Ø = 60mm, depth ≥ 30mm |
| Color: | RAL 9003, RAL 9010 |
| Communicatie & Protocol: | Z-Wave |
| Compatibility switches (brand / series): | Gira System 55 |
| Dimming method: | Trailing edge (fase afsnijding) |
| Installation: | 3-wired, Input for 2-way switch |
| Maximum load capacity: | 1VA - 200VA |
| Power source: | 230V AC 50Hz |
| Protocol: | Z-Wave |
| Supported load types: | LED, 230V halogen, incandescent lamps, dimmable LED drivers, electronic transformers |
| Support for Scene controller: | Yes |
