Heatit WiFi7 Thermostat - White RAL 9003 Glossy
Thermostat with Z-Wave to control electrical heating
Product number:
5430545
Manufacturer:
Heatit
EAN:
7071236019695
Product information "Heatit WiFi7 Thermostat - White RAL 9003 Glossy"
The Heatit WiFi7 thermostat is designed for controlling electric underfloor heating and hydronic heating systems. In addition, the thermostat can also be used as a relay for simple on/off switching. The thermostat features WiFi and Bluetooth (BLE) connectivity and is equipped with a clear 14-segment LED display with user-friendly controls.
Temperature can be measured using the built-in room temperature sensor, a floor sensor, or up to two external temperature sensors. Configuration and operation can be carried out via the display or through the MyHeatit app for Android and iOS. The thermostat also supports local API integration and is compatible with Google Home and Alexa.
The thermostat can be used as a stand-alone device or communicate wirelessly with other Heatit products via DirectLink and BlueFusion. In addition, the device fits the most common System 55 frames, such as those from GIRA.
The Heatit WiFi7 thermostat offers 3 modes: heating, cooling and eco.
Features
- Wi-Fi (2.4 GHz) / BLE thermostat

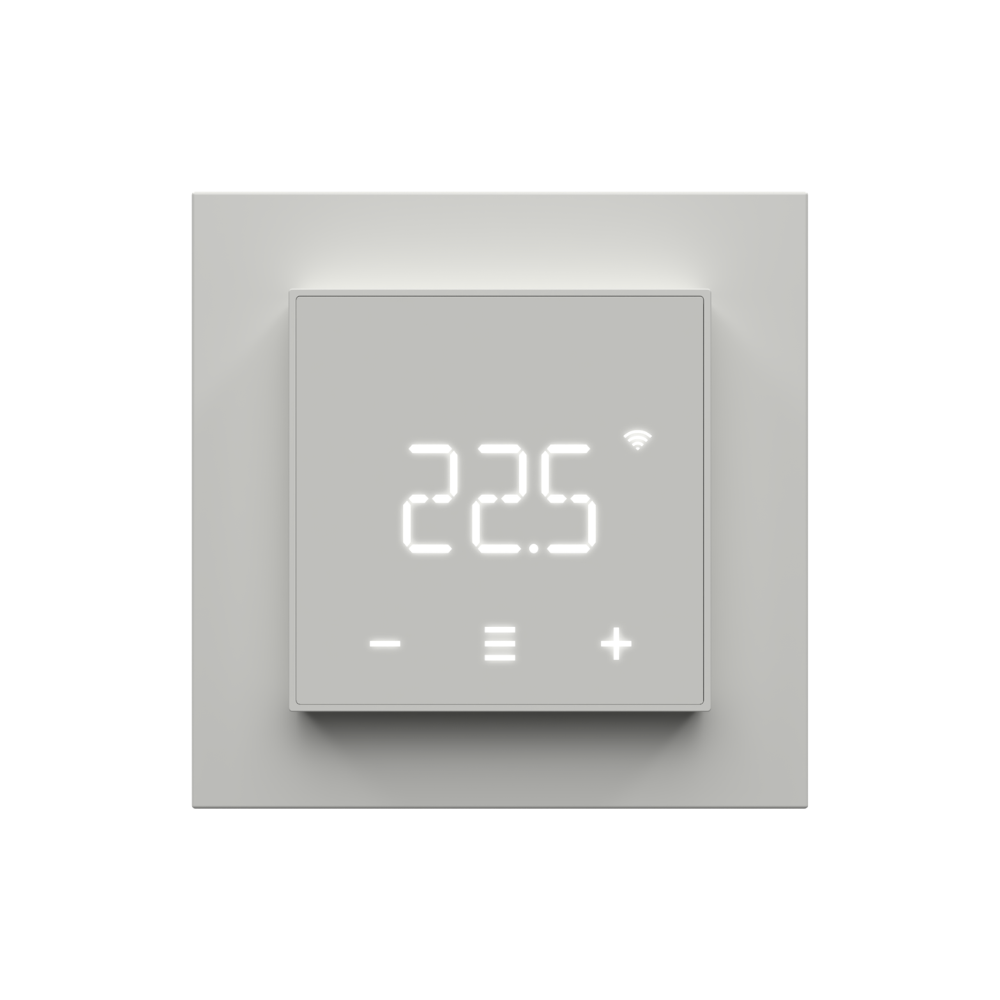

- 14-segment LED display
- Internal room temperature sensor
- External room temperature sensor (wired)
- Floor sensor
- Relay function
- Power regulator
- Temperature limiter
- 3 modes: heating, cooling and eco
- Hysteresis/PWM control
- Temperature calibration
- Open window detection
- ZeroX™ detection
- Relay status icon
- Adjustable display brightness
- Single-pole switch (maximum 16A / 3600W)
- Lock mode / child lock
- Open API for local integration
- Google Home and Alexa support
- Weekly schedule in the app
- Profiles: Home - Away - Night - Work
- DirectLink and BlueFusion support
- Active power metering
- Protected against overload and overheating
- Firmware update (OTA)

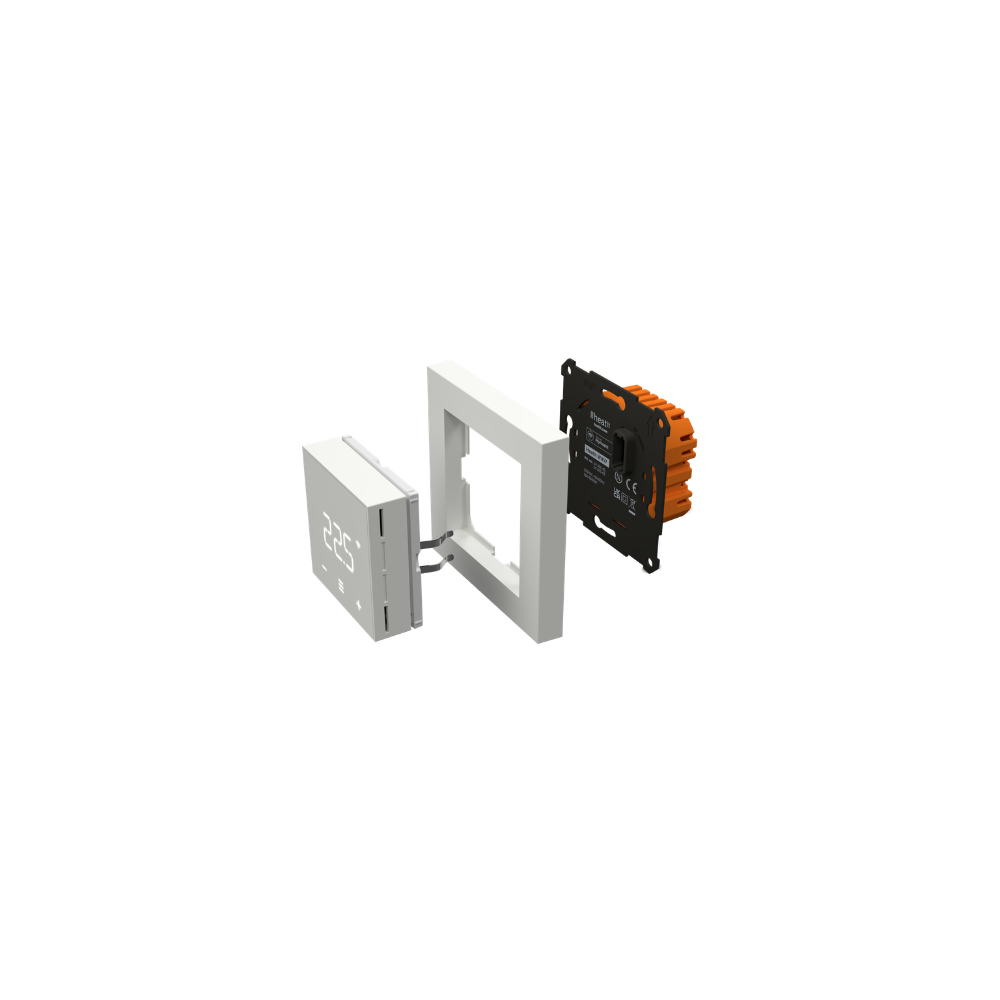

- Compatible with System 55 frames
Properties
| Adjustable temperature: | 5°C - 40°C |
|---|---|
| Color: | RAL 9003 |
| Compatibiliteit NTC sensoren: | 6.8, 10, 12, 15, 22, 33, 47, 100 kΩ @ 25°C |
| Compatibility switches (brand / series): | Gira System 55 |
| Current measurement: | Active current measurement |
| IP value: | IP21 |
| Maximum load capacity: | 16A |
| Power source: | 230V AC, 50/60 Hz |
| Temperature sensors type: | External sensor (wired), Floor sensor (wired), Internal sensor |
| Voice assistant support: | Alexa, Google Home |
Downloads "Heatit WiFi7 Thermostat - White RAL 9003 Glossy"
